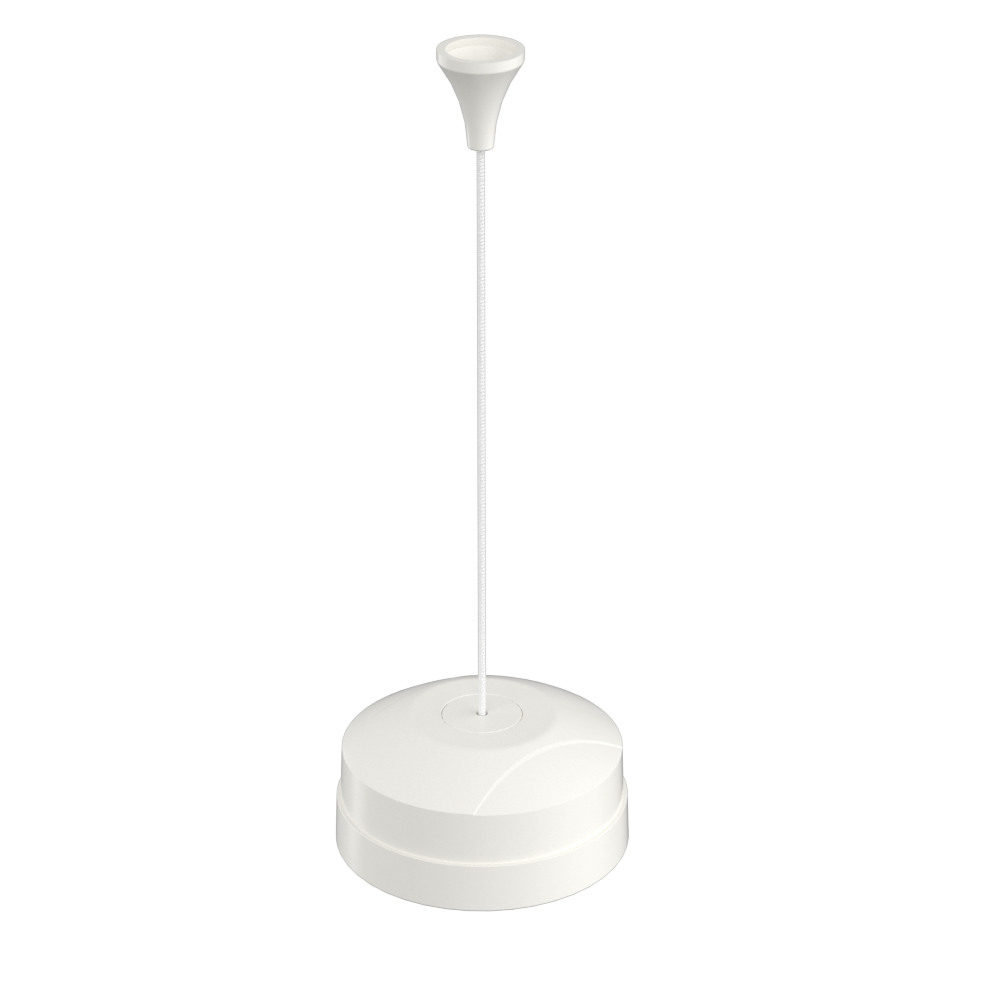

Ceiling Pull Cord LED Dimmer Switch

This is a combination of a dimmer and a traditional pull cord switch, which not only retains the traditional operation method, but also provides a convenient dimming experience.

Model No.		D029
Description		Ceiling Pull Cord LED Dimmer switch
Input Voltage		220-240V
Input frequency		50Hz
Load	LED	5-100W
	Incandescent	5-150W
	Halogen	5-150W
Dimming mode		Trailing edge
Control Way		One way
Material	Heatsink	Aluminum
	Bottom Case	PC
Color		White
Weight(g)		76.9
Dimension(mm)		Φ72.96*34.5mm

Back to list

Model No.		D029
Description		Ceiling Pull Cord LED Dimmer switch
Input Voltage		220-240V
Input frequency		50Hz
Load	LED	5-100W
	Incandescent	5-150W
	Halogen	5-150W
Dimming mode		Trailing edge
Control Way		One way
Material	Heatsink	Aluminum
	Bottom Case	PC
Color		White
Weight(g)		76.9
Dimension(mm)		Φ72.96*34.5mm

/Uploads/file/20241028/20241028214918_67059.pdf

Download Center

To know further details of this product, please download the following user manual.

Potentiometer

Heat sink

Coverplate
