Basic Dimmer-HZC ELECTRIC

Home / product / Dimmer

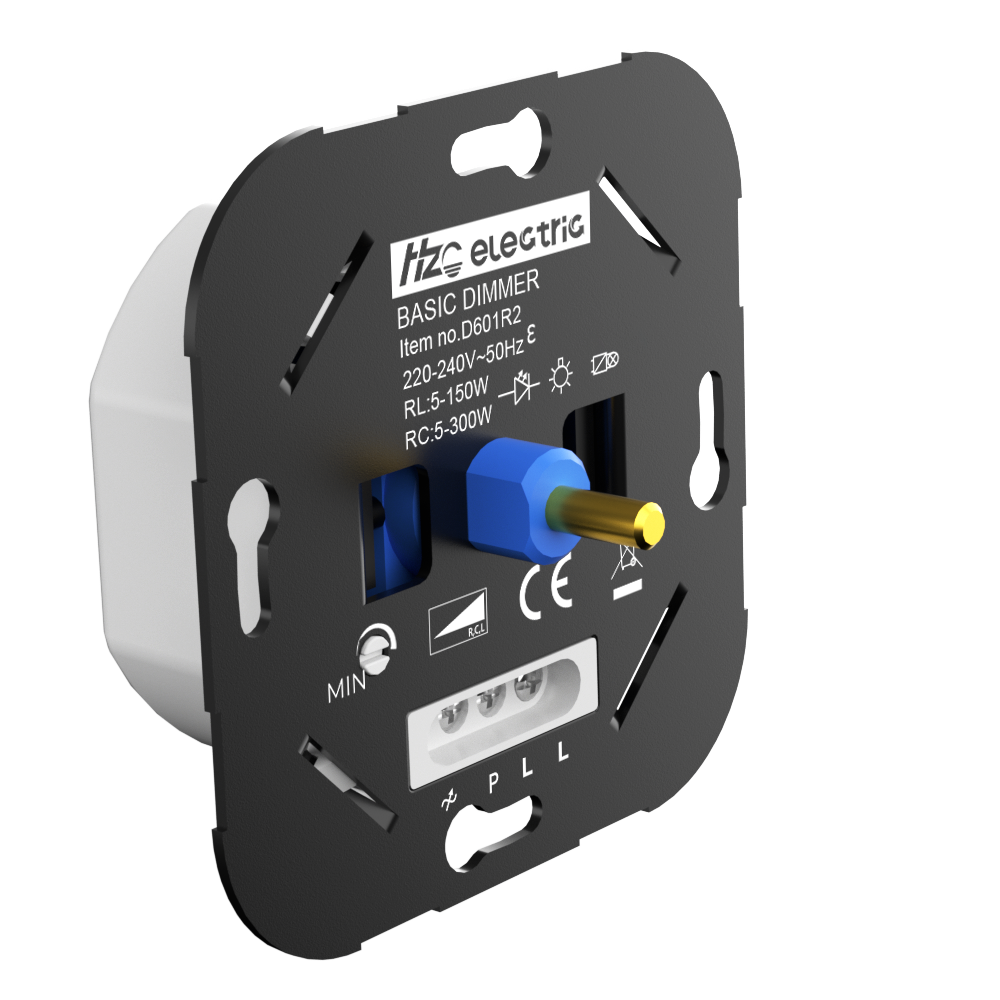

Basic Dimmer

This dimmer features smooth and noiseless dimming. lt is a popular choice for those who want a straightforward and reliable option for controlling their lighting. This dimmer is compatible with most types of LED lamps and can be easily installed in just a few steps.

Model No.		D601R2
Description		Basic Dimmer
Input Voltage		220-240V
Input frequency		50Hz
Load	LED	RC: 5-300W RL: 5-150W
	Incandescent
	Halogen
Dimming mode		Trailing Edge & Leading Edge
Control Way		Two way
Material	Heatsink	Aluminum
	Bottom Case	PC
Color		White
Weight(g)		49.3
Operating temperature		-10℃～+40℃
Dimension(mm)		707041.4mm

Back to list

Model No.		D601R2
Description		Basic Dimmer
Input Voltage		220-240V
Input frequency		50Hz
Load	LED	RC: 5-300W RL: 5-150W
	Incandescent
	Halogen
Dimming mode		Trailing Edge & Leading Edge
Control Way		Two way
Material	Heatsink	Aluminum
	Bottom Case	PC
Color		White
Weight(g)		49.3
Operating temperature		-10℃～+40℃
Dimension(mm)		707041.4mm

/Uploads/file/20241028/20241028183039_97269.pdf

Download Center

To know further details of this product, please download the following user manual.

Potentiometer

Heat sink

Coverplate
