Remote (via smartphone or PC) and local on/off and dimming control for most of the dimmable bulbs
Does not require a neutral wire
Support SmartStart
Compatible with Frame like Busch Jaeger, Jung, Berker, Peha, Schneider, Elko (RS16, plus), etc.
Capable of measuring the power consumption of the connected device in real time via smartphone, which allows you to save on electricity bills
Features one of the easiest and quickest installations of devices of this kind, fits in standard 40mm deep switch box
Offer a extra port(terminal for external push switch)
Supports auto-inclusion mode for quick set up
Can automatically turn devices on and off after a set period (helpful when you’re away from home, for example)
Supports additional parameters for expert users, which allows advanced configuration
Acts as a signal repeater which improves the range and stability of your Z-Wave network
Can be used to remotely control and trigger other devices in your Z-Wave network
Trailing-edge dimmer, which means that is suitable for different types of the connected load

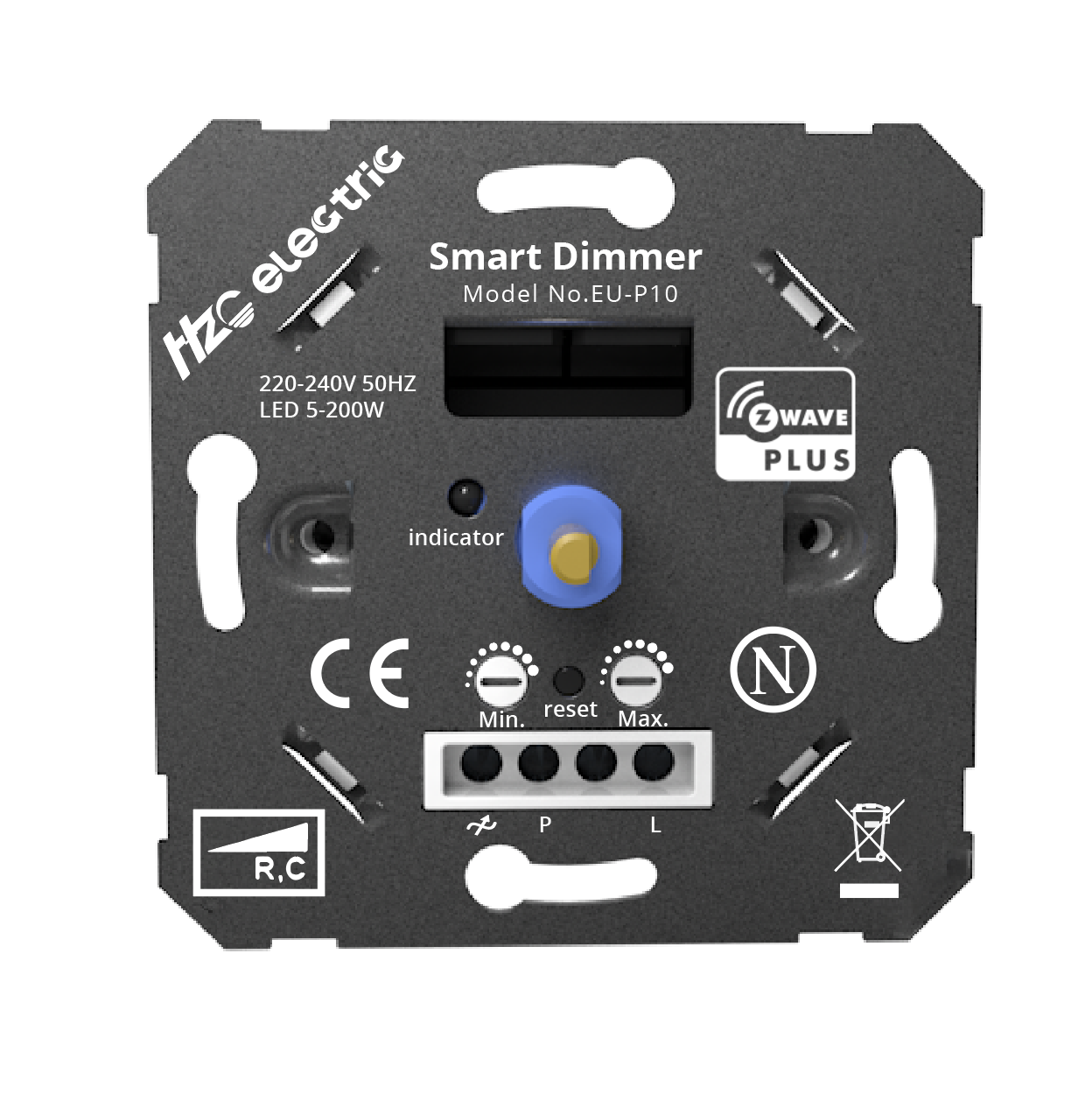

- Model Number: EU-P10 - Power Supply: 220-240V, 50Hz - Min. Load: 8W (Without bypss) 3W (Bypass required) - Max. Load: Dimmable LEDs up to 200W Incandescent up to 300W Halogen up to 300W - Dimming Technology: Trailing edge / phase / R,C - Control Way:One way / Multiway (Only activate when the P port is connected to push switches) - Connection terminal: Screw-in terminal, max 2.5mm2 - Connections: 2 x Line (looped internally) 1 x Dimmer output 1 x Push switches (For multiway dimming and on/off) - Radio protocol: Z-Wave Plus 500 (EU 858.4MHz) - Approvals: CE (Nemko) Z-Wave Plus (Security S2) - Dimension: 70.6*70.6*33mm (Suitbable for 4cm deep box) - Weight: 53.66g (Without Coverplate)

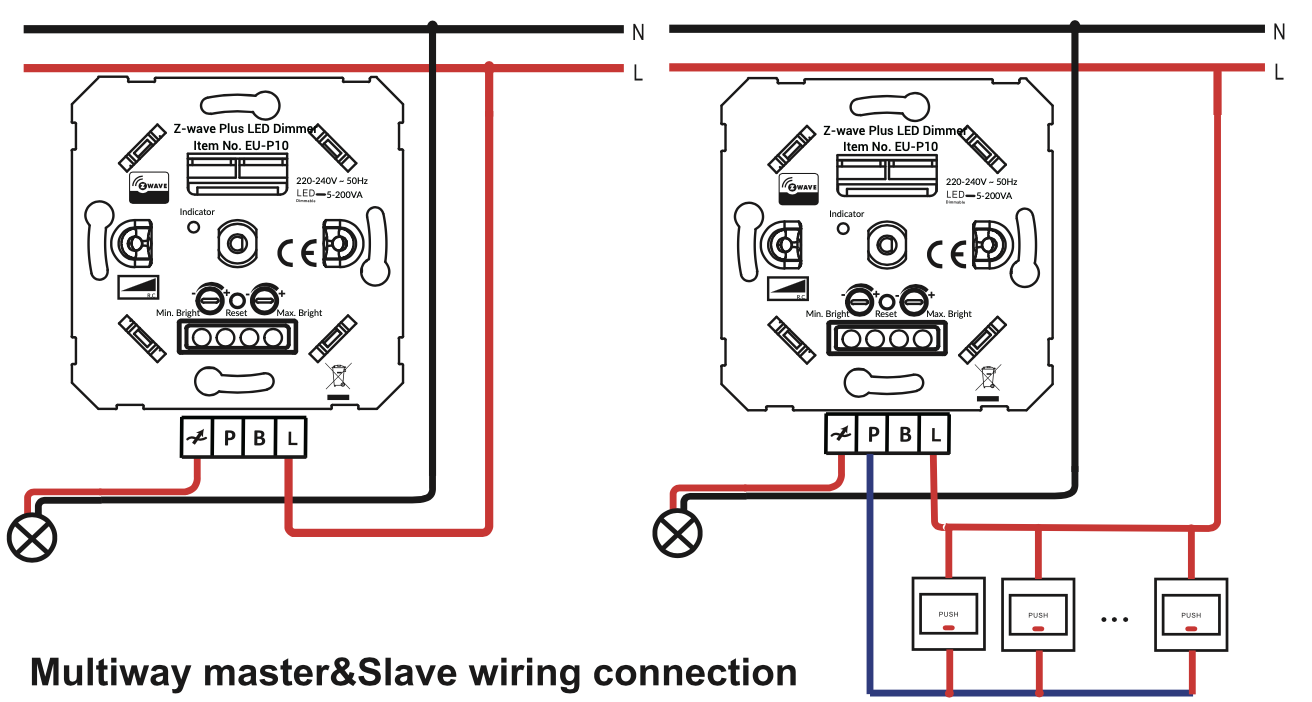

Wiring

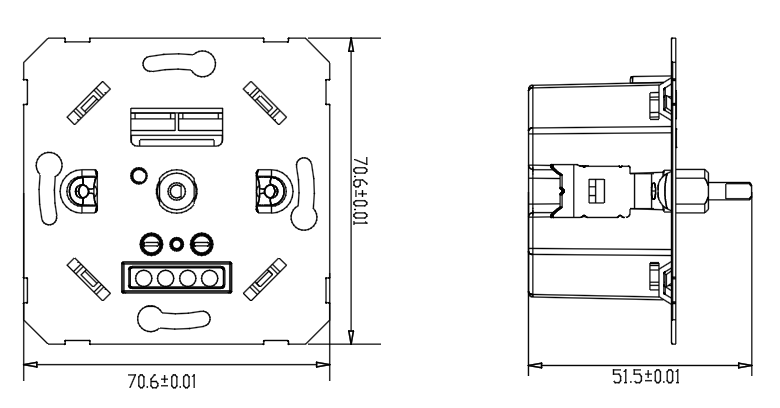

Dimension
Download Center
To know further details of this product, please download the following user manual.
