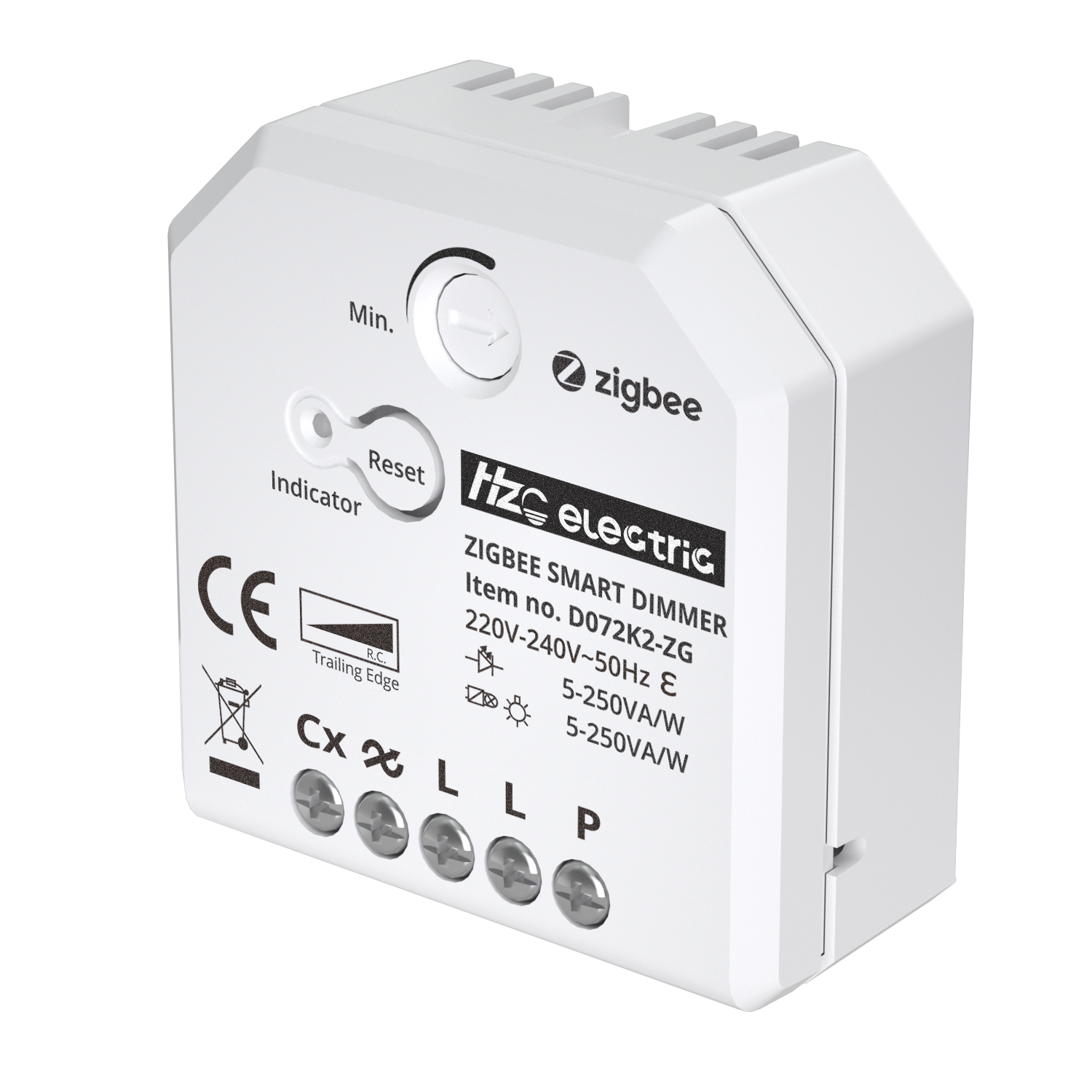

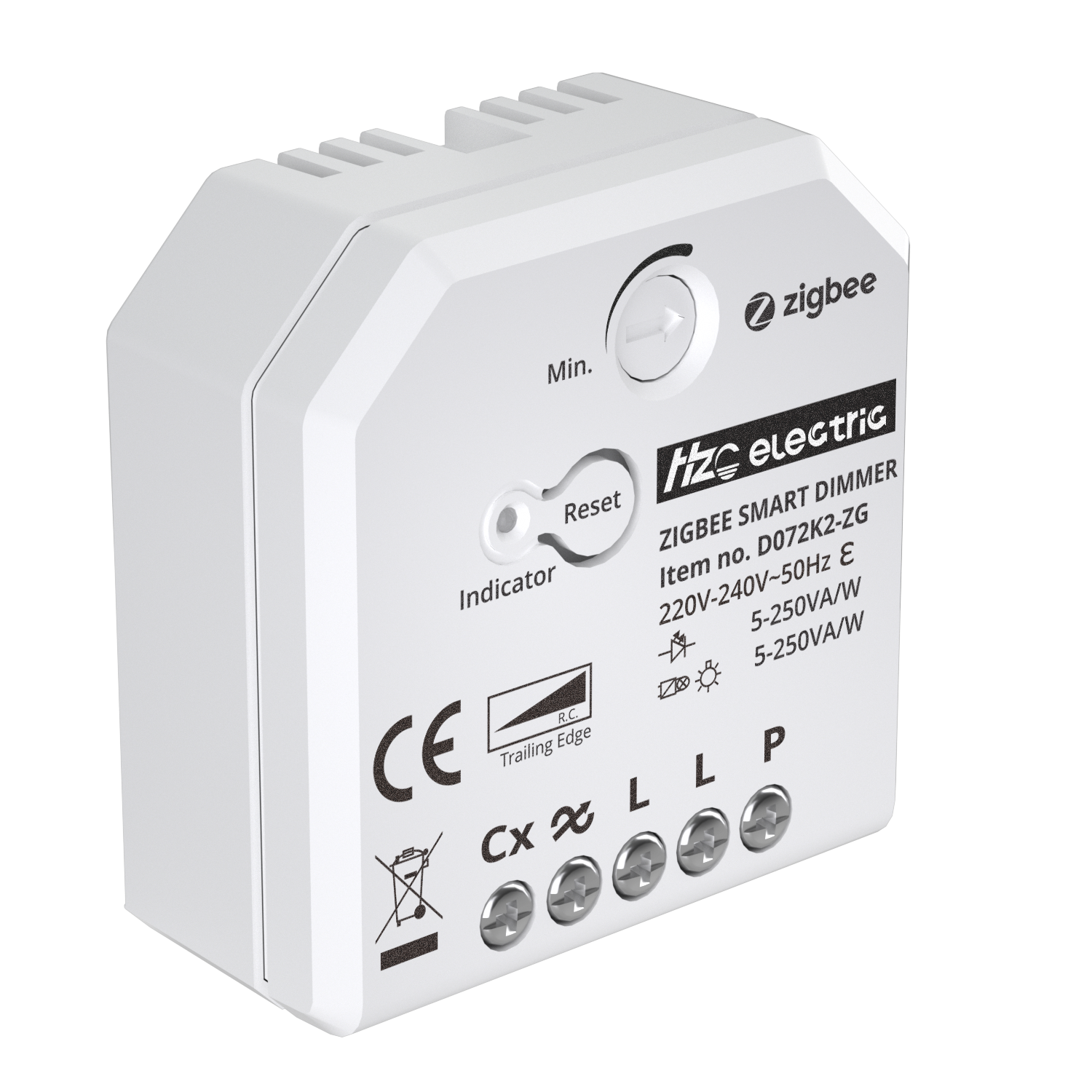

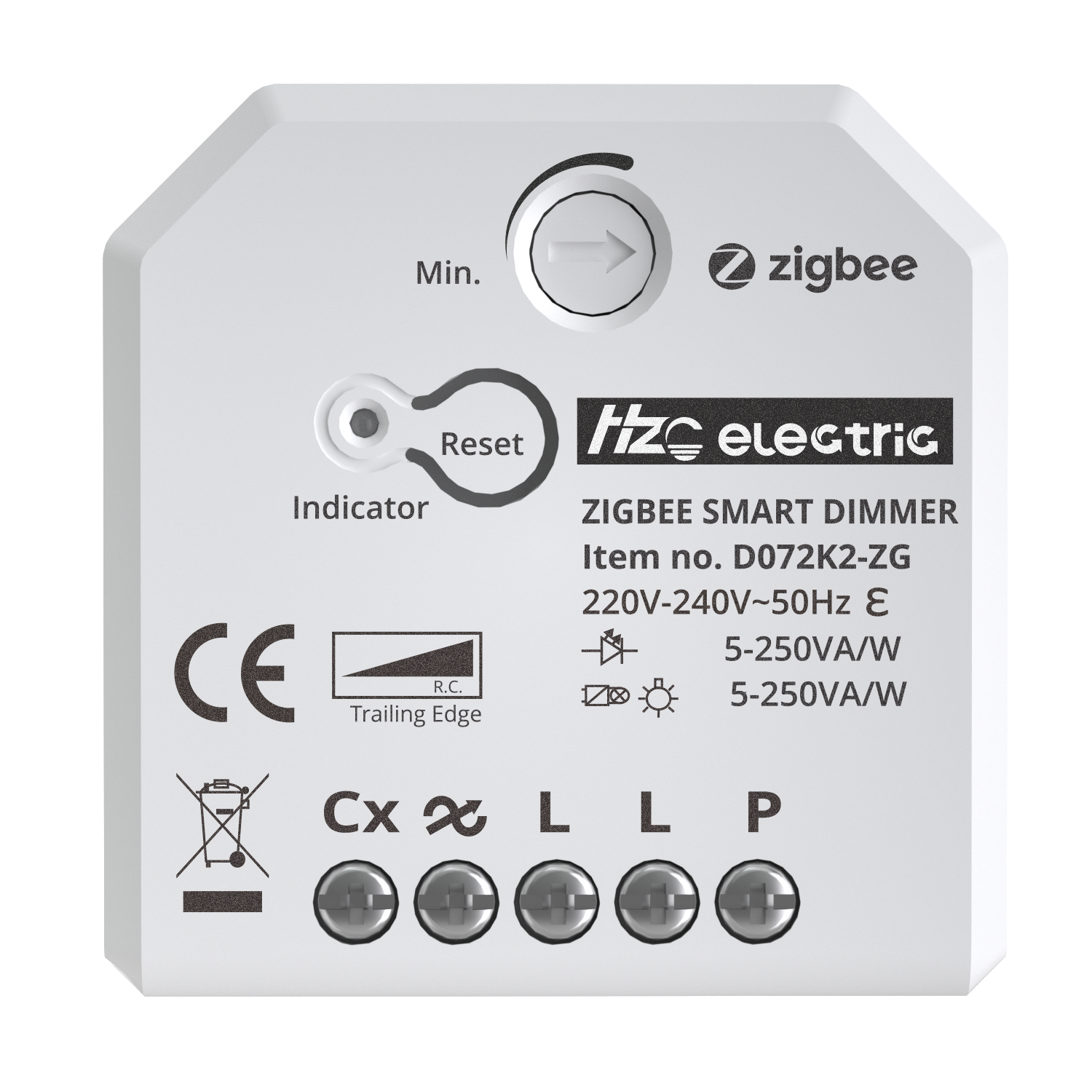

Zigbee Smart Dimmer
This is a smart dimmer puck with max 120W output. With min. and max. brightness adjustment, you can always achieve the best comfort brightness for your house. You can also control the device from multiple locations with an external push switched connected to P terminal.
|
Model No.
|
D072K2-ZG
|
|
|
Description
|
ZIGBEE SMART DIMMER
|
|
|
Input Voltage
|
110-240V
|
|
|
Input frequency
|
50Hz
|
|
|
Load
|
LED
|
5-250W
|
|
|
Incandescent
|
5-250W
|
|
|
Halogen
|
5-250W
|
|
|
Dimming mode
|
Trailing Edge
|
|
|
Control Way
|
Multiway
|
|
|
Material
|
Heatsink
|
Aluminum
|
|
|
Bottom Case
|
PC
|
|
|
Color
|
White
|
|
|
Weight(g)
|
45
|
|
|
Dimension(mm)
|
45.5*46*19.8
|
|
