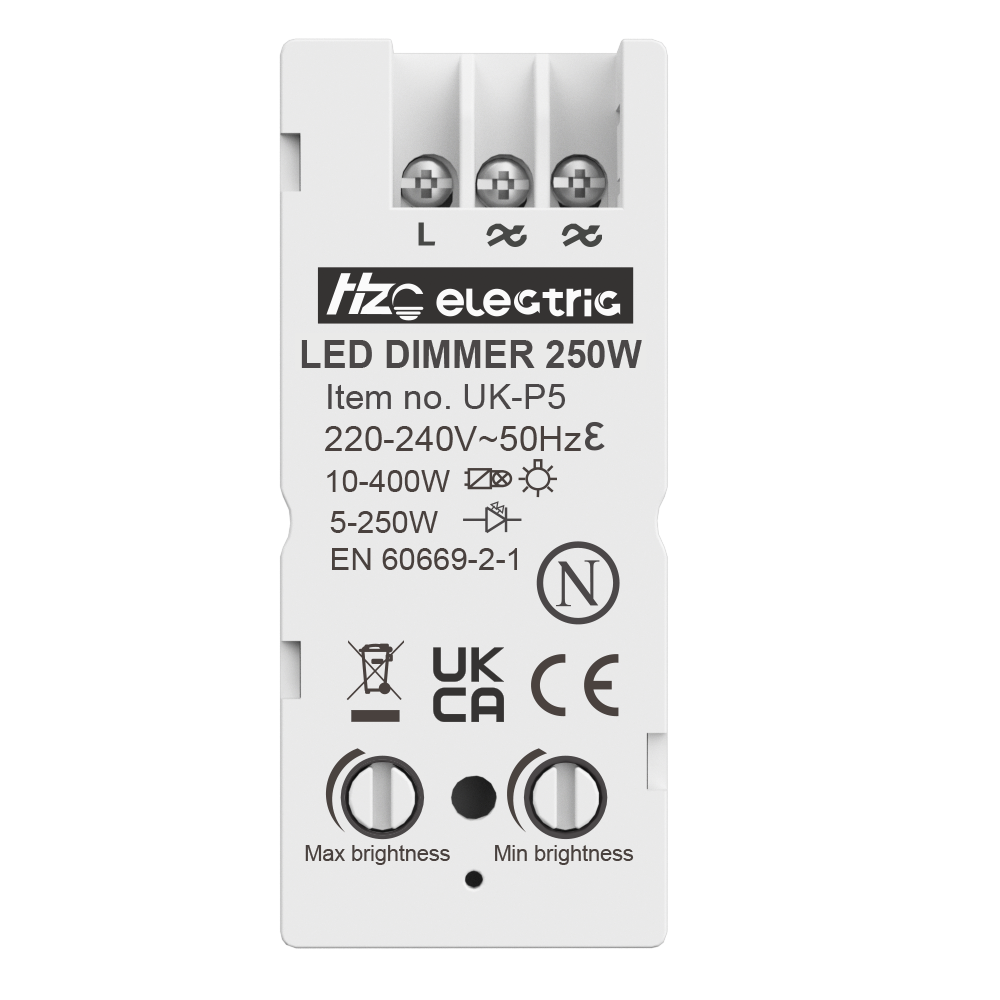

LED Dimmer 250W

This GRID dimmer is specially developed for the UK market and can fit DETA, Schneider, BG, Wandsworth, MK, Hamilton, Hager, Crabtree.

Model No.		UK-P5
Description		LED Dimmer 250W
Input Voltage		220-240V
Input frequency		50Hz
Load	LED	3-250W
	Incandescent	10-400W
	Halogen	10-400W
Dimming mode		Trailing edge
Control Way		Two way
Material	Heatsink	Aluminum
	Bottom Case	PC
Color		White
Weight(g)		31.9
Operating temperature		-20℃～+40℃
Dimension(mm)		59.3526.225.33mm

Back to list

Model No.		UK-P5
Description		LED Dimmer 250W
Input Voltage		220-240V
Input frequency		50Hz
Load	LED	3-250W
	Incandescent	10-400W
	Halogen	10-400W
Dimming mode		Trailing edge
Control Way		Two way
Material	Heatsink	Aluminum
	Bottom Case	PC
Color		White
Weight(g)		31.9
Operating temperature		-20℃～+40℃
Dimension(mm)		59.3526.225.33mm

/Uploads/file/20241028/20241028220048_21233.pdf

Download Center

To know further details of this product, please download the following user manual.

Potentiometer

Heat sink

Coverplate
